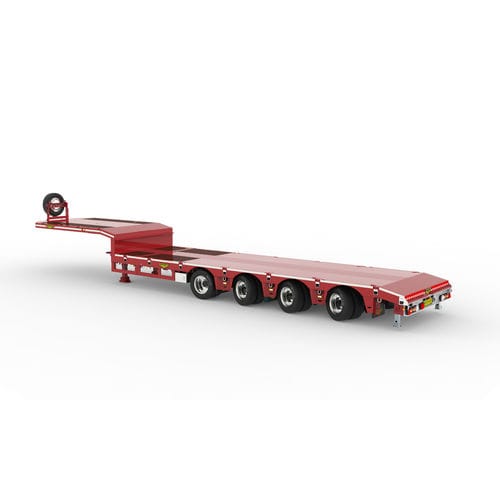

Gooseneck semi-trailer
air-suspension4-axletowed

gooseneck semi-trailer
gooseneck semi-trailer
Add to favorites
Compare this product


Characteristics

Type
gooseneck, air-suspension
Number of axles
4-axle
Mounting
towed
Other characteristics
hydraulic
Payload

50 t
(55.12 us ton)

Description

4-axle hydraulically steered semi low loader Ready for heavy work This trailer is hydraulically operated. For this purpose the axles are hydraulically controlled using a steering wedge in the gooseneck. Thanks to the adjustable conical bearings in the steering system, our semi-low loaders require less maintenance and, thanks to the hydraulically controlled axles, our semi-low loaders can get to the most difficult-to-access places. The specifications below are for a single extendible 3-axle hydraulically steered semi low loader. As you have come to expect from us, you can also get a 3-axle hydraulically steered semi low loader according to your specifications. Consider for instance ramps, double extendible or wheel wells! We will be happy to help you configure your own semi low loader. You can contact one of our employees for this at any time with no obligation. General specifications Single extendible 13 T air suspension (260 mm stroke) 12 T axles (technical) Hydraulically operated All lines protected inside the beam Low maintenance App. 50 T load capacity Technical specifications 23 T kingpin load 40 T bogie load, technically 48 tonnes App. 13 T tare weight 43° steering angle 895 mm bed height (loaded) Fully automatic alignment system Remote steering Low-maintenance steering control system 240 mm high side bar Chequered plate floor level with the side bar
