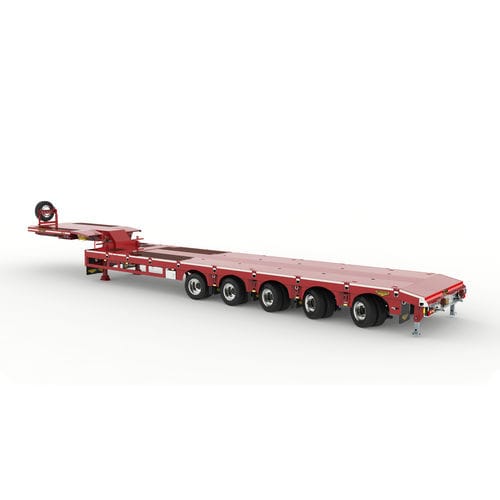

Gooseneck semi-trailer

5-axletowedwith hydraulic suspensions

5-axle hydraulically steered semi-low loader For those who just want a little bit more The triple-extendible hydraulically-controlled semi low loader can reach a total trailer length of 40.2 metres. With the hydraulic steering, you can still be highly manoeuvrable with this length! Thanks to the adjustable conical bearings in the steering system, our semi-low loaders require less maintenance. Read more We most often offer our 5-axle hydraulically controlled trailer with a triple extendible cargo bed. Of course, it is also possible to develop an exclusive trailer! Consider for instance a trailer that extends less often, allowing you to choose a fixed gooseneck. The fixed neck has a lower tare weight, giving you more useful load capacity! General specifications Triple extendible Hydraulic suspension Hydraulically operated Hydraulic gooseneck All lines protected inside the beam Low maintenance App. 53.3 T load capacity Technical specifications 30 T kingpin load 50 T bogie load App. 26.7 T tare weight 43° steering angle 1050 mm bed height (loaded) Fully automatic alignment system Radiographic auxiliary steering Low-maintenance steering control system 240 mm high side bar Chequered plate floor level with the side bar Valves in stainless steel cabinet below the side bar
