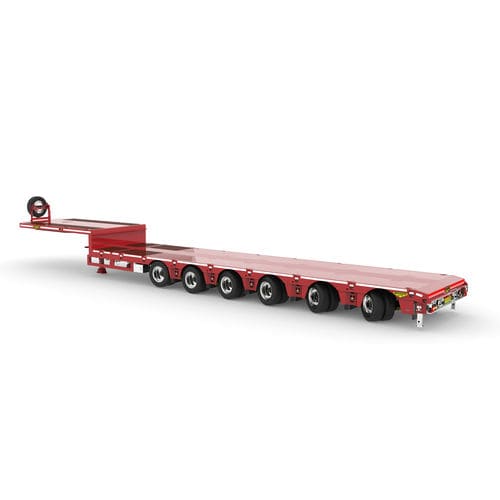

Gooseneck semi-trailer

air-suspension6-axletowed

6-axle hydraulically steered semi-low loader Light-weight design for heavy-duty work This trailer is hydraulically operated. For this purpose the axles are hydraulically controlled using a steering wedge in the gooseneck. Thanks to the adjustable conical bearings in the steering system, our semi-low loaders require less maintenance and, thanks to the hydraulically controlled axles, our semi-low loaders can get to the most difficult-to-access places. Of course, it is also possible to develop your innovative semi-trailer! With single and double extendible variants, this 6-axle trailer is very flexible, but if you have very special wishes, of course we will also want to be your partner! Discover what our engineers can do for you. General specifications Single extendible Air suspension Hydraulically operated Fixed gooseneck All lines protected inside the beam Low maintenance App. 73 T load capacity Technical specifications 30 T kingpin load 60 T Bogie load 17 T tare weight 43° steering angle 935 mm bed height (loaded) Fully automatic alignment system Remote steering Low-maintenance steering control system 240 mm high side bar Chequered plate floor level with the side bar Valves in stainless steel cabinet below the side bar
