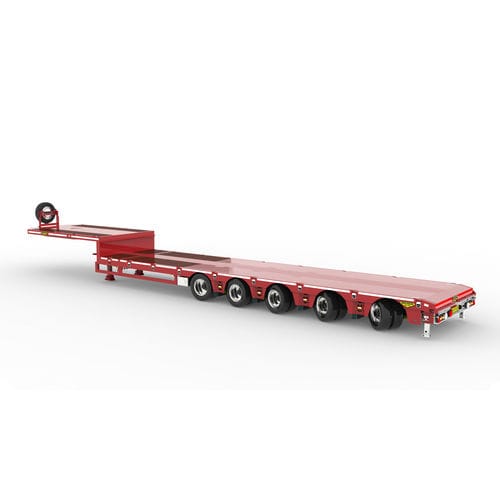

Gooseneck semi-trailer

5-axletowedextendable

General specifications Single-, double-, triple-extendible Adjustable neck (by Triple extendible) Independent suspension Hydraulic suspension Hydraulically operated from the kingpin Ride height 850 mm laden App. 68 T load capacity (based on single extendible) Technical specifications 23 T kingpin load 60 T bogie load App. 15 T tare weight (based on single extendible) 57° steering angle Bed height from 790 mm Fixed or hydraulic gooseneck Automatic alignment system Remote steering Low-maintenance steering control system 240 mm high side bar Chequered plate floor level with the side bar Twistlock plates for containers: 1x20 ft, 1x30 ft, 1x40 ft, 1x45 ft All lines protected inside the beam Neck • The (single beam) neck height is 230 mm and suitable for 23T fifth wheel pressure. Under rear side of the neck accordance ISO chamfer Front extension 1400 mm Chamfered corners at front 400x400 mm • Fifth wheel height 1170 mm • Neck width 2530 mm • Rear swing cleareance 2350 mm • Hard wood floor of 28 mm thick • 3,5" Kingpin, fitted under a ball bearing turntable. The turntable is connected to two double action hydraulic steering rams. Holder is suitable for mounting a 2" kingpin • 10T certified lashing rings (max. Load 5T) . According NEN12640 TÜV Certificate • Divided at the side raves of the neck, dim. 96x66x6mm, suitable for stakes of 81x51mm • Spare wheel carrier at front of the gooseneck. Suitable for one spare wheel. • Slope for easy access of the neck 600x12°. U profile for the attachment of aluminium ramps • Landing gear two speed vertical lift, with S foot. Static capacity of 50.000 kgs
