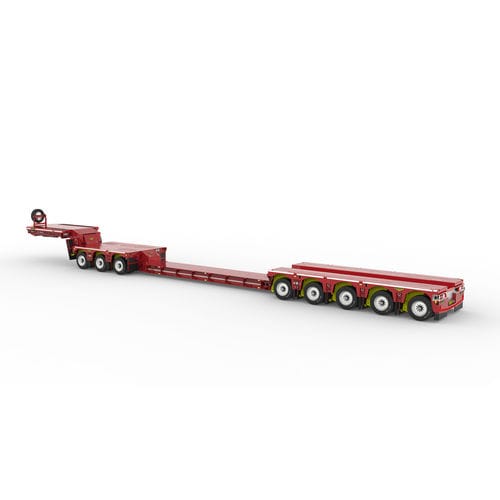

3+5 PL2 HD dolly low loader combination
Can be supplied in a range of designs, for virtually any terrain
Our PL2 HD 3+5 pendle axle dolly low loader combination is characterised by its functionality and durability. Thanks to the high stroke of the PL2 HD pendle axles, the combination is ideally suited for off-road use. Its easy operation, maintenance and service life are priorities for our pendle axle low loaders.
The specifications below are for a 3+5 As you have come to expect from us, you can also get a 3+5 according to your specifications. Consider for instance a double beam version. We will be happy to help you configure your own low loader combination . You can contact one of our employees for this at any time with no obligation.
General specifications
Removable dolly
Optional central beam or outer beam
285 tires
Extendible bogie, for greater flexibility
Large stroke of 600 mm
Tower bearing, low-maintenance and -MOT
App. 109,6 T load capacity
Technical specifications
25 to 35 T kingpin load
111,2 T bogie load
App. 39,5 T tare weight
14 T per axle line technically
70° steering angle (with 2850 mm width of the bogie)
Bed height from 400 mm possible
Expandable to 3000 mm
Fully automatic alignment system
Hatz diesel generator
Gigant axles with Broshuis pendle arm
