Platform trailer

gooseneck3-axletowed

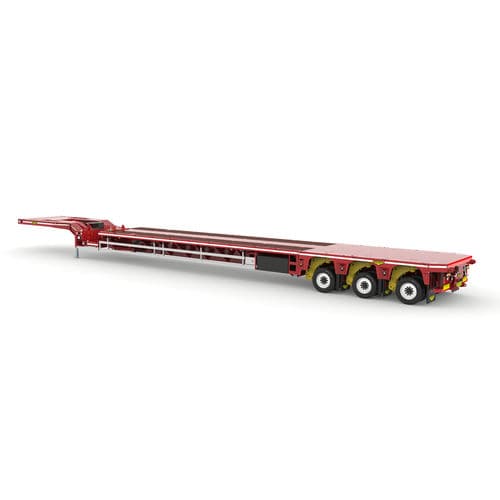

3-axle Quattro Blade Trailer The Quattro for wind turbine wings The four-times extendible pendle axle flat semi-trailer has been one of our most recent innovative developments. This trailer is able to reach a length of 67 m and has been specially developed for transporting wind turbine wings. The hydraulically elevating gooseneck, together with the high stroke of the pendle axles, provides the advantage that the trailer can travel excellently over obstacles. General specifications Four times extendable Hydraulically elevating neck (820 mm) Beam drivable at two heights because of the extendible gooseneck Hydraulic suspension Pendle axles, with stroke of 600 mm App. 28.8 T load capacity Technical specifications 30 T kingpin load 36 T bogie load App. 37.2 T tare weight 60° steering angle 230 mm high gooseneck 1250 mm bed height Fully automated alignment system to prevent tyre wear Remote steering Better manoeuvrability thanks to foldable side protection Hydraulic support leg for more effective retracting and extending
