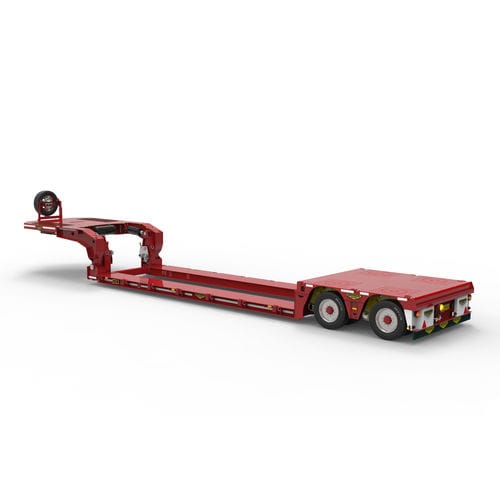

Gooseneck semi-trailer

2-axletowedwith hydraulic suspensions

2-axle pendular axle low loader Most nett payload When your highest priority is the usable load capacity, the 2-axle low loader with pendular axles is just the thing for you. The high load capacity is the result of the 12 T load capacity per axle line by law (in the Netherlands) without exemption. The long 600 mm stroke gives extra options to move over rough (off-road) terrain. This two axle pendular axle low loader is the only one of its kind to because of an extremely low and short axle bogie. This way you can transport higher loads on the axle bogie and you have a longer low bed within the legal dimensions! The base model of our 2-axle pendular axle low loader is shown below. As you expect from us, you can also get a low loader according to your specifications. Consider for example a fixed gooseneck, double extendible or lower beams. Don’t hesitate to contact our experts for this. General specifications Single extendible Pendular axles PL2 Hydraulic suspension Hydraulically steered Removable neck Long suspension stroke of 600 mm App. 32 T load capacity Technical specifications 23 T kingpin load 24 T bogie load App. 15 T tare weight Lowerbed height 270 mm Bogie height 850 mm Automatic alignment system Two beam chassis Within the Legal dimensions
