5-axle trailer

towedfor industrial materialslow-loader

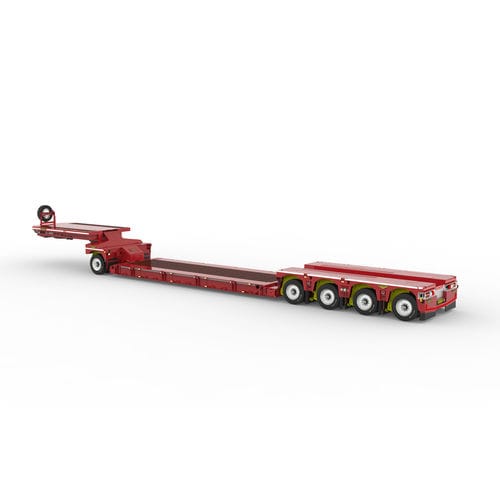

1+4 PL2 HD axle low loader Dolly combination The optimal solution... especially on rough terrain This combination with PL2 HD pendle axles is characterised by its fixed dolly. An 1-axle dolly delivers optimal weight distribution. The pendle axle low loader, thanks to its high stroke, is suitable for off road. Its easy operation and service life are priorities for our pendle axle low loaders. Do you need a special low loader? Then tap into the expertise of our engineers! The specifications below are for a 1+4 As you have come to expect from us, you can also get a 1+4 according to your specifications. Consider for instance a central beam version. We will be happy to help you configure your own low loader combination . You can contact one of our employees for this at any time with no obligation. General specifications Fixed dolly Optional central beam or outer beam 285 tires Extendible bogie, for greater flexibility Large stroke of 600 mm Tower bearing, low-maintenance and -MOT App. 69,5 T load capacity Technical specifications 25 T kingpin load 69,5 T bogie load App. 30,5 T tare weight 14 T per axle line technically 70° steering angle (with 2850 mm width of the bogie) Bed height from 400 mm possible Extendible in the width to 3000 mm Fully automatic alignment system Hatz diesel generator BPW axles with Broshuis pendle arm
