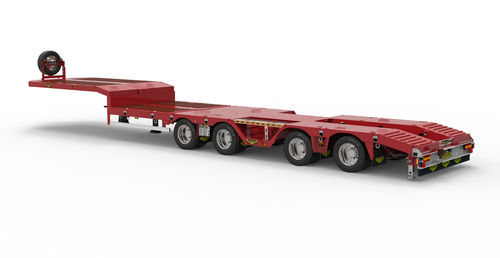

Air-suspension semi-trailer
self-tracking4-axletowed

air-suspension semi-trailer
air-suspension semi-trailer
Add to favorites
Compare this product


Characteristics

Type
air-suspension, self-tracking
Number of axles
4-axle
Mounting
towed
Products carried
for machines
Other characteristics
extendable
Payload

47.4 t
(52.25 us ton)

Description

4-axle construction semi low loader All-rounder in construction transport What makes the construction semi low loaders unique is its extremely low tare weight. This 4-axle trailer is also designed with wheel wells. These characteristics make it an excellent chassis for many of your wheel loaders. The chassis also has a slope on the neck, which makes it easy for you to load machines on the neck. The specifications below are for a 4-axle self-tracking construction semi low loader single extendible. As you expect from us, you can also choose other specifications, such as this trailer equipped with ramps or a crane arm recess. We will be happy to help you configure your own semi low loader. You can contact one of our employees for this at any time with no obligation. General specifications Single extendable Air suspension Self tracking Wheel wells Low maintenance App. 47.4 T load capacity Technical specifications 18 T kingpin load 40 T bogie load App. 10.6 T tare weight 880 mm bed height (loaded) 200 mm high side bar Chequered plate floor level with the side bar Twistlock plates for detachable twistlocks 1 x 20 ft container Pull out' galvanised outriggers Rear side of the neck chamfered 600x12° Beavertail chamfered 900x12° All lines protected inside the beam
