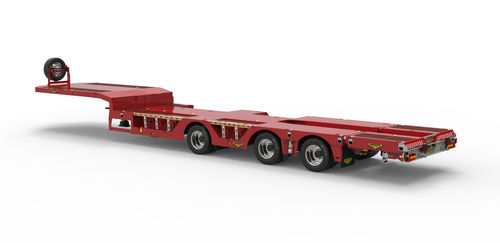

3-axle semi-trailer

towedhydraulicextendable

3-axle hydraulically steered semi low loader with ECO ramp Very easy to operate The semi low loader with ECO ramp is the ideal solution for your wheel loaders with high ground clearance. The ECO ramp has many advantages relative to the normal ramps. Because the ramp lies horizontal, the fuel saving can be as much as 20% and you can easily carry overhanging loads, giving you much more flexibility. The specifications below are for a 3-axle hydraulic steered semi low loader with ECO ramp. As you have come to expect from us, you can also get a 3-axle hydraulic steered semi low loader with to your desired specifications. Consider for instance normal ramps or wheel wells! We will be happy to help you configure your own semi low loader. You can contact one of our employees for this at any time with no obligation. General specifications Single extendible Excavator arm trough Wheel well Ramp app. 15 T lifting capacity 20% fuel saving Low maintenance App. 35 T load capacity Technical specifications 18 T kingpin load 30 T bogie load App. 13 T tare weight 895 mm bed height (loaded) 240 mm high side bar Chequered plate floor level with the side bar Twistlockplates for 1 x 20 ft, 1 x 40 ft, 1 x 45 ft Pull out' galvanised outriggers All lines protected inside the beam
