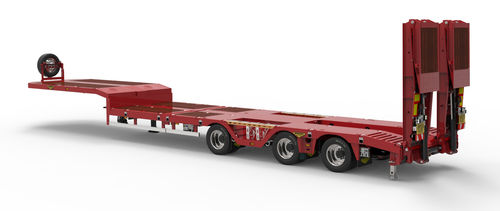

3-axle construction semi low loader with loading ramps
All-rounder in construction transport
This lightweight 3-axle self-tracking construction semi low loader is built so you can transport virtually all construction machines up to app. 37.3 T. The trailer is provided with wheel wells (extra wheel opening is formed by extending the trailer) to enable the wheel loaders to be loaded lower. This trailer also has a crane arm recess to allow the boom to be transported lower. You can easily load and unload the machines with the longer slope (lower ramp angle) at the rear.
The specifications below are for a 3-axle self-tracking construction semi low loader with single extension. As you have come to expect from us, you can also get a 3-axle self-tracking construction semi low loader according to your specifications. Consider for instance Eco ramps! We will be happy to help you configure your own semi low loader. You can contact one of our employees for this at any time with no obligation.
General specifications
Single extendable
Self tracking
Hydraulic ramps
Wheel wells
Crane arm recess
App. 37.3 T load capacity
Technical specifications
18 T kingpin load
30 T bogie load
App. 10.7 T tare weight
870 mm bed height (loaded)
200 mm high side bar
The wheel well in the split of the trailer
Twistlock plates for detachable twistlocks 1 x 20 ft container
Pull out' galvanised outriggers
Beavertail chamfered 900x12°
All lines protected inside the beam
An excavator trough of 3200 mm length and 750 mm width
