Air-suspension semi-trailer

self-tracking4-axletowed

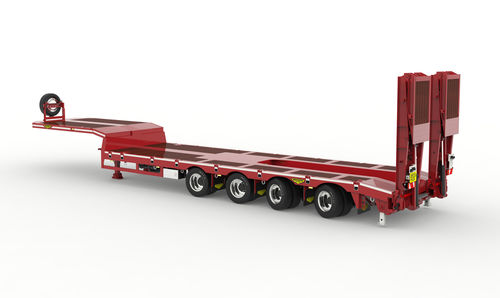

4-axle self tracking plant semi low loader with ramps Semi low loader suitable for many types of machines This machine semi low loader is a fully designed concept. It provides a rock-solid solution for multiple small machines or for one large machine. With the 25 T neck, you can use your cargo capacity better. Almost the whole cargo bed is provided with hardwood. This gives the machines more grip, and you can even load tracked vehicles easily. The specifications below are the standard specifications for this trailer. Of course, you can also develop a special trailer with us. Consider for instance this trailer in a single extendible variant. We will be happy to help you configure your own semi low loader. You can contact one of our employees for this at any time with no obligation. General specifications Not extendable Air suspension Self tracking Hydraulic ramps Adjustable in width ramps App. 50.5 T load capacity Technical specifications 25 T kingpin load 40 T bogie load App. 14.5 T tare weight 905 mm bed height (loaded) 240 mm high side bar Chequered plate floor level with the side bar Twistlock plates, for the use of detachable twistlocks: 1 x 20 ft Pull out' galvanised outriggers All lines protected inside the beam
