Air-suspension semi-trailer

3-axletowedfor industrial materials

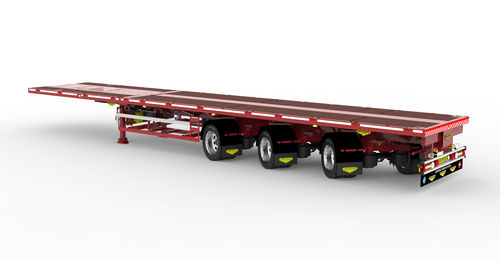

3-axle double extendable flat trailer Hydraulically steered, 245 tires The double extendable flat semi-trailer, also called twice extendable semi-trailer, is the most sold flat semi-trailer. Despite the slight increase in tare weight, you have a trailer up to almost 30 meters in length and this version is on 245 tires and therefore lower allowing you to carry higher loads than the variant on 275 tires. Thanks to the hydraulic steering, 30 meter turns with this are no problem at all. Many of the double extendable trailers last more than 20 years making the annual investment low. Below you will find all the important information you need to know about the double extendible flat trailer. General specifications Double extendable Air suspension Hydraulically steered Prestressed chassis App. 1210 mm load floor height App. 36.5 T load capacity Technical specifications 18 T kingpin load 30 T bogie load App. 11.5 T tare weight 55° steering angle 160 mm thick gooseneck Various coupling heights possible Automatic alignment system Easy-slide system for easy sliding Pilot steering Twistlockplates for containertransport 1 x 20 ft. and 1 x 40 ft.
