Oxygen analyzer

airpowerflow

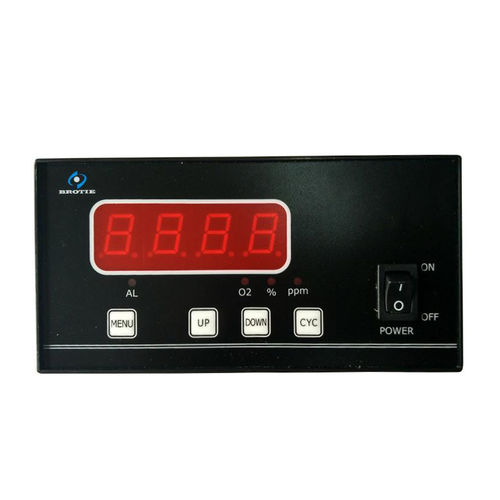

BROTIE High Purity Oxygen Analyzer Features: 1.New pattern, long-life, with long service life, fast response and high sensitivity; 2.Sensor designed by ion current technology; 3.Menu locking function provided, avoid the misoperation to change the parameters on the analyzer; 4.Automatically memorizing system equipped, operation time of the analyzer will be recorded automatically ; 5.Compact size, simple construction, easy on operation and after service; Industries Served: It can be used in high purity oxygen production(PSA, VPSA, Cryogenic), metallurgy, health, petrochemicals, and power electronics industries. Specifications: Range: - 10.00%-96.00% Accuracy: ±2% of FS range Repeatability: ±1% of FS range Principle: Ion current technology (can service in Air and inert gases, not corrosive gases.) Sample gas flow speed: 400～600ml/min Stability: ±1% of FS/7d Response time: 90% of FS reading in 60 seconds Power supply: 220V±10%, 50/60Hz Signal outputs: 4-20mA Expected analyzer life: More than 5 years (in normal condition) Expected sensor life: 2-3 years (in normal condition) Installing dimension: W×H×D=150mm*74mm*167mm
