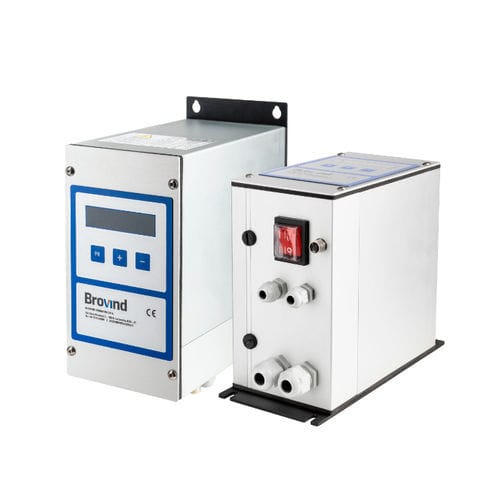

Electromagnetic feeder controller CFF series

vibrating

The CFF, used to control electromagnet drive units, at 3000 or 6000 oscillations/min. They have an input voltage range from 110V to 230V, provide excellent control of vibrator speed and keep it constant over time via a feed-back sensor, including in the presence of variation of the electricity network and load. A memory area is available for entering Boolean logic to manage input sensors and output relays, start/stop, etc. Equipped with RS485 serial communication (ASCII and MOD BUS RTU protocol) Devices with 6-15 A output available, IP54 aluminium enclosure Thanks to our controllers we are able to offer interconnected control systems for the main automatic vibratory feed and orientation solutions, based on the most advanced criteria of industry 4.0. Our electronic devices ensure precision diagnostics, providing reports in real time useful for preventing malfunctions and for real time correction of production based on expected results and performance. All Brovind controllers are built inside the company and are equipped with proprietary software.
