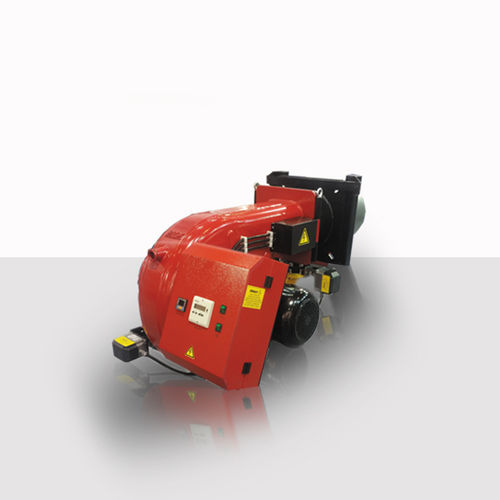

Monobloc burner BRX/MG

gasdirect firedindirectly fired

BRX/MG Series gas & light oil burners cover the thermal capacity range of 70 to 5800 kW and are suitable for use in steam boilers, steam generators, hot and superheated water boilers, hot oil boilers and similar applications. Depending on the required capacity, the burner operation can be single-stage, two-stage or modulating. In addition, the electronic cam option can be provided on request for modulating burners. It provides “significant savings in fuel consumption” by providing high combustion efficiency. The air flow is controlled by a servomotor, and it works at optimum sound values thanks to the monobloc fan coupled to the light, special construction body and the specially designed air intake circuit. Comply with Gas-burning appliances European standard EN676 and meet the requirements specified in the 2016/426/EU Regulation. It provides easy maintenance thanks to the double-sided hinge that allows the combustion head to be removed without the need to separate the burner from the boiler. It has IP55 protection in the electrical control panel, plug-in connection for electrical connection and command control. Gas devices and components of high quality and well-known brands are used on the burner.
