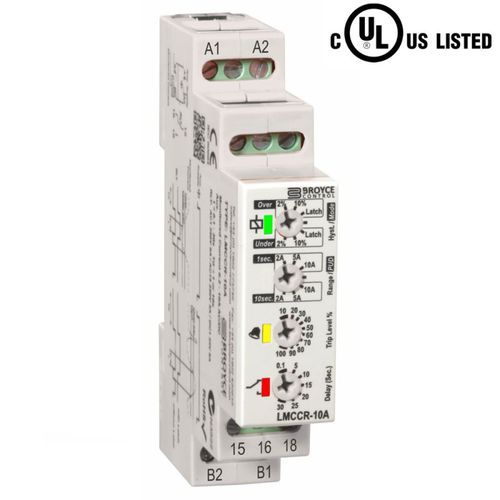

Over-current monitoring relay LMCCR-10A

under-currentSPDTAC/DC

- Under or Over current monitoring (selectable) - Adjustable Trip level, Hysteresis and Time delay + Latch - Isolated Auxiliary supply - SPDT Relay output - 17.5mm wide, DIN Rail mount - UL Listed The product is designed to monitor current in a feed to a load. An auxiliary supply (required to power the unit) must be present for the product to function. Two monitoring modes available: Under current: In normal operation, the relay is in the energised state (monitored current above the set trip level). When the current decreases below the trip level, the relay will de-energise after the set delay. The current must increase above the trip level plus the hysteresis before the relay will re-energise. Over current: In normal operation, the relay is in the energised state (monitored current below the set trip level). When the current increases above the trip level, the relay will de-energise after the set delay. The current must decrease below the trip level minus the hysteresis before the relay will re-energise.
