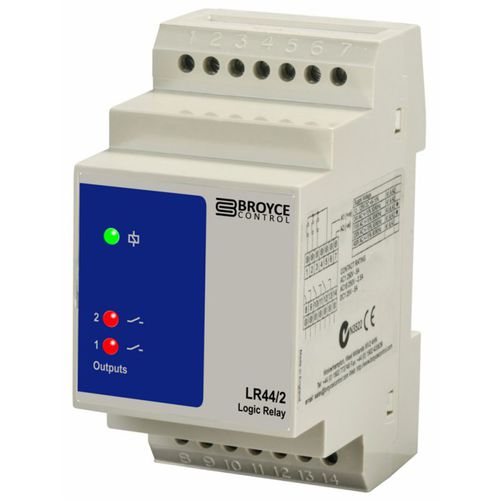

2 NO monitoring relay LR44/2

AC/DCmotorfor generators

• Logic Relay designed to balance wear between motors, compressors and generators • Monitors 2 external N.O. contacts • Built in “Help” function • Isolated Auxiliary supply • 2 x SPNO Relay outputs • 44mm wide, DIN Rail mount The product is designed to monitor the status of the externally wired contacts and operate/alternate the output relays in turn on each closure of the contact. A “help” function is included such that it allows the second relay to energise (after a short delay) when the other contact is closed. An auxiliary supply (required to power the unit) must be present for the product to function. Specification • No. of monitored inputs: 2 • Response time: 50ms (relay energising/de-energising) • Time delay: 2s (Help function) • Aux. supply voltage: 100 – 230V AC/DC • Output: 2 x SPNO 5A @ 250V (AC1) • Dimensions(mm): W:44 x H:85 x D:63.5
