Timer on delay LEDK
DIN railSPDT

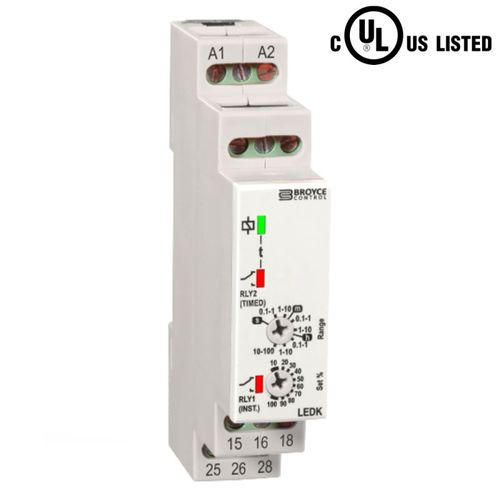

Timer on delay - LEDK - Broyce Control - DIN rail / SPDT
Timer on delay - LEDK - Broyce Control - DIN rail / SPDT
Timer on delay - LEDK - Broyce Control - DIN rail / SPDT - image - 2
Timer on delay - LEDK - Broyce Control - DIN rail / SPDT - image - 3
Add to favorites
Compare this product


Characteristics

Function
on delay
Mounting
DIN rail
Other characteristics
SPDT
Voltage

Max.: 230 V

Min.: 12 V

Description

- Delay On Operate with Instantaneous Contact - Multi-time range (0.1s – 100h) - 2 x SPDT Relay outputs - 17.5mm wide, DIN Rail mount - UL Listed The timer is offered with two separate relays. One relay (Instantaneous contact) energises as soon as power is applied and remains in this state until power is removed. The second relay (Delay On Operate) is delayed and remains de-energised for the set time delay period. After the delay has elapsed, the relay energises. Power must be removed and re-applied to restart the function over again.
