Multi-start attempt timer LMAT
DIN railfor engineSPDT

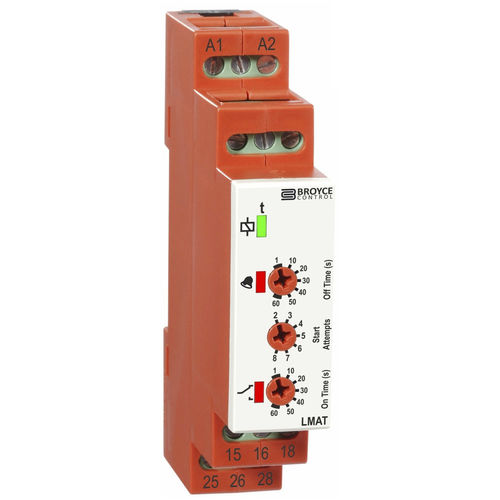

Multi-start attempt timer - LMAT - Broyce Control - DIN rail / for engine / SPDT
Multi-start attempt timer - LMAT - Broyce Control - DIN rail / for engine / SPDT
Multi-start attempt timer - LMAT - Broyce Control - DIN rail / for engine / SPDT - image - 2
Add to favorites
Compare this product


Characteristics

Function
multi-start attempt
Mounting
DIN rail
Product applications
for engine
Other characteristics
SPDT
Voltage

Max.: 48 V

Min.: 12 V

Description

- Multi Attempt to Start - Designed to limit the number of attempts an engine has to start before providing an alarm - Selectable number of attempts (2-8) - Multi-voltage (12 –48VAC/DC) - Single time range (1 – 60s) - 2 x SPDT Relay outputs - 17.5mm wide, DIN Rail mount - UL Listed The timer is offered with two separate relays. When power is applied, the first relay (Attempts) will energise for the set “on” time delay period, then de-energise for the set “off” time delay period. This is classed as the “first attempt”. The same relay will continue to cycle on and off for the “number of attempts” set on the adjustment. If all the attempts are allowed to run, at the end of the last “on” time delay period, the first relay will de-energise and the second relay (Alarm) will energise and remain in this state. Power must be removed and re-applied to restart the function over again.
