Recycling screener BPS series

sortingfor the paper industryfor waste

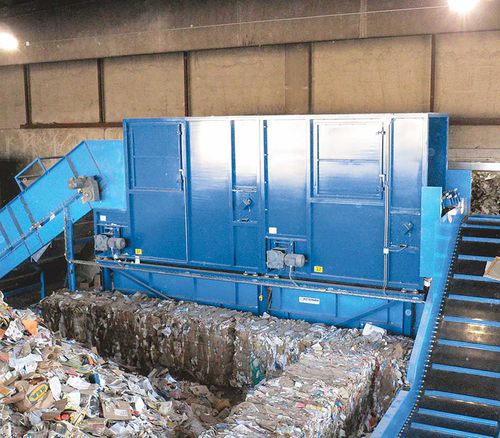

Ballistic Separator BRT HARTNER BPS for Waste Paper Ballistic Separator for the Separation of Cardboard and Cardboard Boxes from Waste Paper and for Fine Screening of Impurities from the Mixed Paper The Ballistic Separator BRT HARTNER BPS is the best choice for an effective sorting process with high availability at low cost. The Ballistic Separator separates the material into two fractions. The waste paper falls through the openings of the paddles. Subject to its climbing ability cardboard travels upward, to the overflow at the upper end of the machine. The vertical acceleration mixes the material thoroughly which leads to good separation with a high separation quality. The construction with several screening decks in a row supports the efficiency. Ballistic Separators are the best alternative in comparison to disc screens or rotor screens. They are nearly entanglement-free as well as maintenance-friendly and flexible in use. The size of the openings in the paddles is reduced for the fine screening of the previously generated mixed paper fraction. Thus, problematic fine shares and impurities are removed from the material which enhances the deinking quality. A sturdy machine design for continuous operation, a wide variety for different types of application and a patented bearing distinguish the BRT HARTNER BPS Ballistic Separator. The bearings are exchangeable without dismounting of the shaft. A high-maintenance crankshaft is not necessary. In addition, the machine impresses with a shock-absorber-system for each paddle and a central lubrication system.
