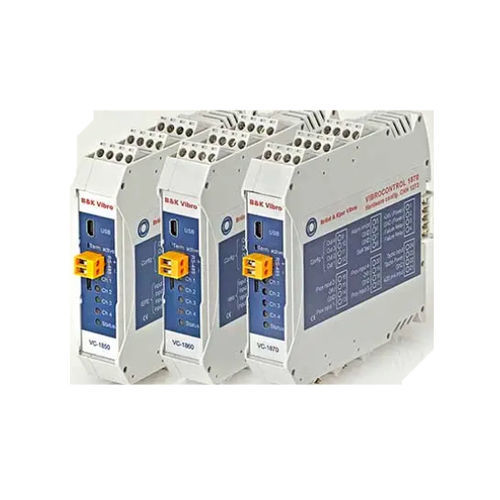

Speed monitoring system VIBROCONTROL 1800 Series

vibrationfor machine protectionrotary machine

Compact and versatile machine protection system The VIBROCONTROL 1800 (VC-1800) series cost-effectively monitors vibration on most rotating equipment with either rolling-element bearings or sleeve bearings. Depending on your application, you may choose from amongst 3 monitoring devices: • Monitor casing vibration on rolling-element bearing machines with • either VIBROCONTROL 1850 (using acceleration sensors IEPE/CCS) or • VIBROCONTROL 1860 (using velocity sensors) • Monitor axial position and relative shaft vibration on sleeve-bearing machines with • VIBROCONTROL 1870 (using displacement sensors) In addition to reliable machine protection, the VIBROCONTROL 18xx series of compact monitors offers condition monitoring and diagnostics functionality. VC-18xx stores and trends scalar vibration and process data as well as the original time waveform signals. Frequency spectra are available for post-processed using FFT analysis. The instruments are extremely flexible due to their modular link concept. They are accessible from remote. And a “super relay” compliant to ISO/EN 13849-1 provides exceptionally reliable machine protection by offering 2 mechanical relays that are coupled in series for redundancy. Small devices at a competitive price – great value! • Up to four vibration channels • Additional two channels for process and tacho/speed • Four outputs configurable between relays and analog outputs • Communication via ethernet, USB, RS-485,offering OPC UA, Modbus TCP/RTU protocol • Time waveform recording and data storage on PC/server • User-definable frequency bands • Optional software providing a wide range of vibration analyzing and diagnostic functions
