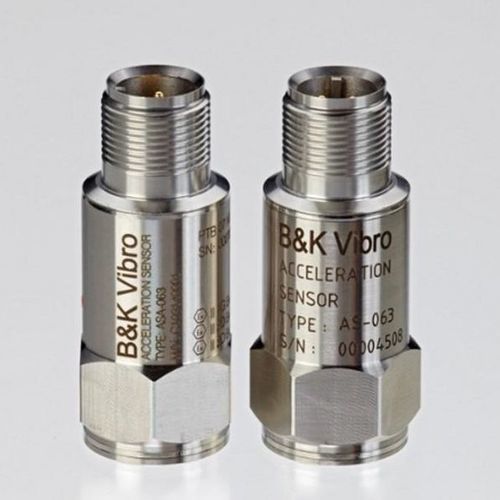

Constant-current acceleration sensor AS-063vibratingflatsensitivity
Add to favorites
Compare this product
Characteristics
- Technology
- vibrating
- Other characteristics
- flat, sensitivity, constant-current
- Frequency
Min.: 1.5 Hz
Max.: 13,000 Hz
Description
Sensitivity: 100 mV/g
Frequency range: 1.5 Hz … 13 kHz (±3 dB)
Min. Temp: -55 °C
Max. Temp: +125 °C
Hazardous area approval: no
Accessory/ connection cable type: AO0572 (MIL-C 5015 – BNC) AO0573 (MIL-C 5015 – open ending)
Accessory/ mounting equipment:
AC-274: Sensor Mounting Plate, 10 pcs for gluing, threaded bold M8 AC-3360: threaded bolt, 1/4″ – 28 UNF to M8
AC-172: Mounting Magnet for flat surfaces threaded bolt M8
AC-273: Mounting Magnet for curved surfaces threaded bolt M8
AC-352: Mounting Bolt M8 to M8
