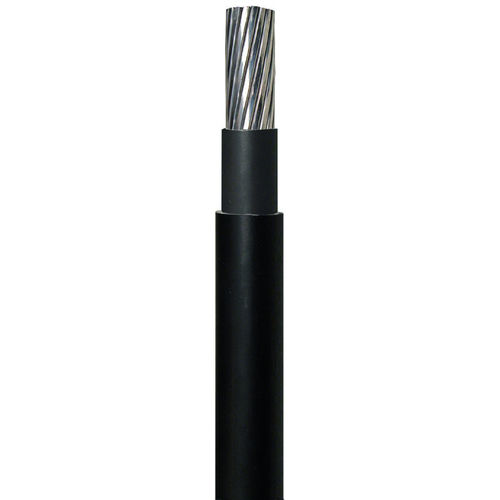

Power cable WILBAwind series
flame-retardantUV-resistantweather-resistant

power cable
power cable
power cable
Add to favorites
Compare this product


Characteristics

Type
power
Protection
flame-retardant, UV-resistant, weather-resistant, robust
Configuration
multi-strand
Core material
aluminum
Number of wire
single-core
Norms
IEC
Other characteristics
halogen-free
Nominal voltage

Max.: 1,000 V

Min.: 600 V

Temperature

Max.: 150 °C
(302 °F)

Min.: -40 °C
(-40 °F)

Cross-section

Max.: 400 mm²
(0.62 in²)

Min.: 150 mm²
(0.23 in²)

Description

Halogen-free, double-layer aluminium class 2 cable for Wind-Energy plants Application FRNC single core cable designed especially for fixed installations in the tower of wind energy plants. Construction Aluminium wire, cl. 2 (IEC 60228) EPR insulation cross-linked Sheat HFFR-compound Description very robust and endurable very good resistance to abrasion halogen-free flame-retardan UV-resistance very good resistance to low- and higt temperatures Ozone- and weather-resistance Min. bending radius 15x D Electrical data Nominal voltage Uo/U 0.6 / 1 kV Operatiing voltage max: AC: Uo/U 0.72 / 1.2 kV DC: Uo/U 0.9 / 1.8 kV Test voltage 4 kV AC
