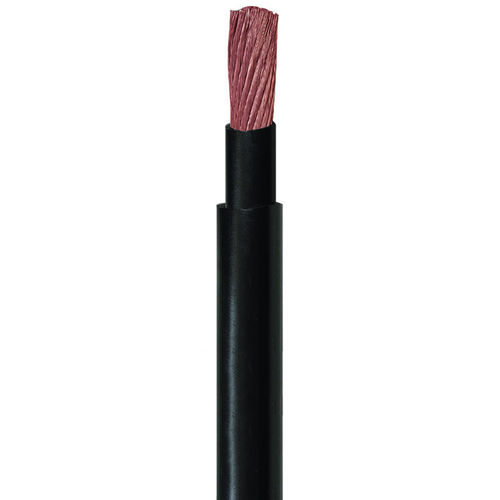

Power cable WILBAwind series oil-resistantflame-retardanthigh-temperature
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- oil-resistant, flame-retardant, high-temperature, robust
- Configuration
- multi-strand
- Core material
- copper
- Applications
- for wind turbine
- Number of wire
- single-core
- Norms
- IEC
- Other characteristics
- flexible, halogen-free
- Nominal voltage
Min.: 600 V
Max.: 1,000 V
- Temperature
Min.: -40 °C
(-40 °F)Max.: 90 °C
(194 °F)- Cross-section
Min.: 25 mm²
(0.04 in²)Max.: 400 mm²
(0.62 in²)
Description
Halogen-free, flexible double-layer copper class 5 cable for Wind-Energy plants
Application
Optimized cable for installations inside of wind energy plants.
Construction
Copper cord: cl. 5 (IEC 60228)
Insulation cross-linked Polymers
Sheath cross-linked Polymers (HFFR)
Description
very robust and endurable
very good resistance to abraison
very good flexibility at low temperatures
excellent resistance to higt tempertures
halogen-free
flame-retardand
very good oil- and petrol-resistance
resistance to ozone- and weather
Min. bending radius 6 x D (D = outer-Ø)
