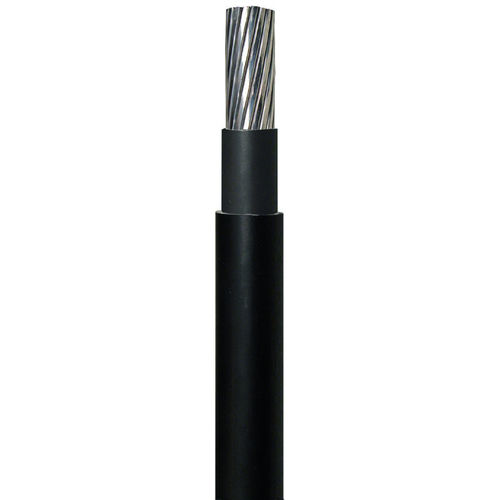

Power cable WILBAwind 0.6

robustaluminumIEC

WILBAwind 0.6/1kV, ALU Cl.2, 90°C Halogen-free, double-layer aluminium class 2 cable for Wind-Energy plants Application FRNC single core cable designed especially for fixed installations in the tower of wind energy plants. Construction * Aluminium wire, cl. 2 (IEC 60228) * EPR insulation cross-linked * Sheat HFFR-compound Description * very robust and endurable * very good resistance to abrasion * halogen-free * flame-retardan * UV-resistance * very good resistance to low- and higt temperatures * Ozone- and weather-resistance * Min. bending radius 15x D Electrical data * Nominal voltage Uo/U 0.6 / 1 kV * Operatiing voltage max: AC: Uo/U 0.72 / 1.2 kV DC: Uo/U 0.9 / 1.8 kV Temperature range * ‑40° ... +90°C * short term application up to +110°C * in case of a short circuit +250°C for 5s Jacket colour Black similar to RAL 9005 Standards Based on HD 604 S1 IEC 60332‑1‑2 Flame retardant IEC 60332‑3‑24 Fire retardant IEC 60754‑1 Halogen free IEC 60754‑2 No corrosive gases IEC 61034‑2 Low smoke emissions ISO 4982‑2 UV resistance (test method A) Remarks Other types on request
