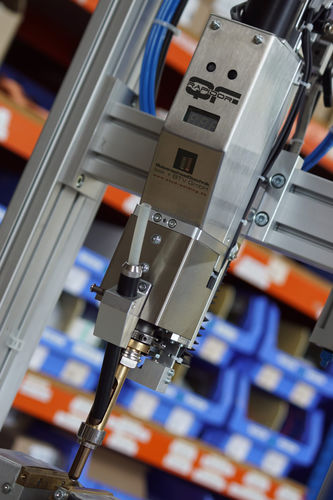

Orbital welding head Rapidor QF

automaticstud

automatic welding head Thanks to the patented, fully automatic bolt length adjustment system for the bolt lengths, all dimensions from 6 mm to 30 mm can be fed in and welded with a standard bolt diameter without time-consuming retooling. Components with a large number of bolts of the same diameter - but different lengths - can thus be processed even more economically and efficiently. The digital automatic welding head RAPIDOR QF is designed for the semi- and fully automatic stud welding of welded studs, bushings and pins according to the following processes Quick set-up thanks to the tried and tested digital display of the lift and immersion dimensions High positioning accuracy because the stud is always guided to the maximum extent in the stud holder No correction required in the Z direction because the bolt always has the same overhang With program-controlled CNC machines, pre-selection of the different lengths in the respective program block of the machine control Fast switching to the required bolt length, so no long dwell times Particularly suitable for robust everyday use on CNC coordinate tables Manual adjustment for semi-automatic operation Long service life and precision due to the encapsulated ball guide unit located outside the welding area few accessories
