Core drilling drilling rig JX2 series

pilingcrawlerrotary

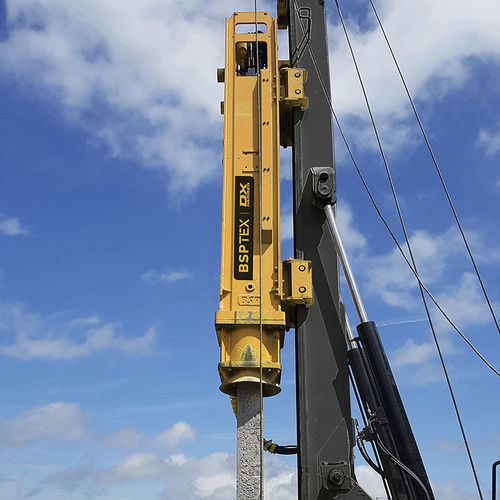

The JX Piling Rig is mobile, self-erecting and radiocontrolled. The rig is mounted on a JCB base unit, uses a 12.5m single piling mast, and any one of the three BSP-TEX hydraulically accelerated piling hammers from the DX range. The JX Piling Rig is capable of driving steel, wood or concrete piles up to 8m in length. JX Rig Main Image A primary braked piling winch carries the 3.9-5.5t piling hammer, and a secondary winch is used to handle the piles. The rig also incorporates a mast foot and pile guide. Refer to the DX hammer range data sheet for more detailed information. Read More Requiring just 150 litres per minute of oil flow at 150-170 bar, the high-performance hammer can deliver up to 30kNm of energy at 60bpm. This performance exceeds the requirement on most projects for concrete driven piles, resulting in the machine working at approximately 50% power. Fuel consumption of the JX Piling Rig is an economical 10 litres per hour. The combined weight of the rig is 28.6t and this light weight, combined with a wide and long undercarriage, reduces the ground pressure imposed by the machine to just 82kN/m2 without a pile. The JX Piling Rig is self-erecting and mobilised in minutes from arrival on site. The double acting cylinder produces a fast blow rate. The double acting cylinder produces high impact energy. With a dropweight of max. 2500 kg and a hammer energy of max. 30 kN.m, the JX can drive piles with ultimate load bearing capacity up to 2500kN. The JX benefits from a wide range of DX accessories, and is capable of driving steel, wood or concrete piles up to 8m in length. The JX rig and hammer is controlled from the cab or radio-controlled (optional extra).
