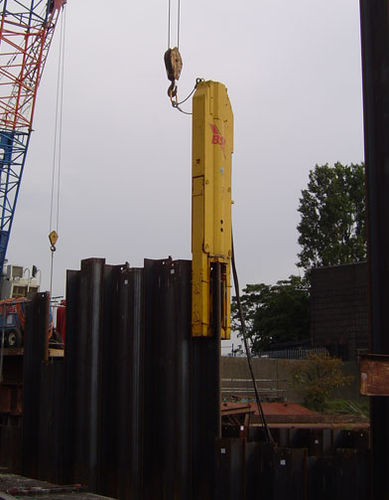

Hydraulic pile-driving hammer SL30

Hydraulic pile-driving hammer - SL30 - BSP International Foundations Limited
Hydraulic pile-driving hammer - SL30 - BSP International Foundations Limited
Hydraulic pile-driving hammer - SL30 - BSP International Foundations Limited - image - 2
Hydraulic pile-driving hammer - SL30 - BSP International Foundations Limited - image - 3
Hydraulic pile-driving hammer - SL30 - BSP International Foundations Limited - image - 4
Hydraulic pile-driving hammer - SL30 - BSP International Foundations Limited - image - 5
Add to favorites
Compare this product


Characteristics

Specifications
hydraulic

Description

The SL hydraulic piling hammers are compact, powerful and versatile. They are designed for driving sheet piles and small bearing piles of concrete, steel or timber. SL Hammer Main Image The SL30 hammer has a drop weight of 2500kg, impact energy of 30kN.m, and a maximum blow rate of 84 blows per minute. The SL30 hammer can drive piles to an ultimate load bearing capacity of 2500kN. They are available with legs and inserts for crane suspended use or with backguides for operating from a piling rig, piling mast or leader. Features of the SL range include total control of hammer stroke and blow rate. The BSP-TEX specially designed and developed double-acting cylinder produces high impact energy from a short stroke. SL hammers are economical to operate due to the high blow rate and low hydraulic power requirement. An optional digital read-out of hammer performance is available. Having a slim design and a width of only 784mm allows the hammers to pass between upstanding piles which includes PZ27 sections. The hammers can be operated directly from a hydraulic crane or are available with BSP-TEX Hydropacks which conform to the latest environmental regulations. Total control of hammer stroke and blow rate Double acting cylinder produces high impact energy from a short stroke to give a high blow rate Slim design allows hammer to pass between upstanding piles Low hydraulic power requirement Available with BSP Hydropacks for optimum hammer performance Hammer can be operated directly from hydraulic crane or excavator bases Can drive piles with ultimate load bearing up to 1800kN
