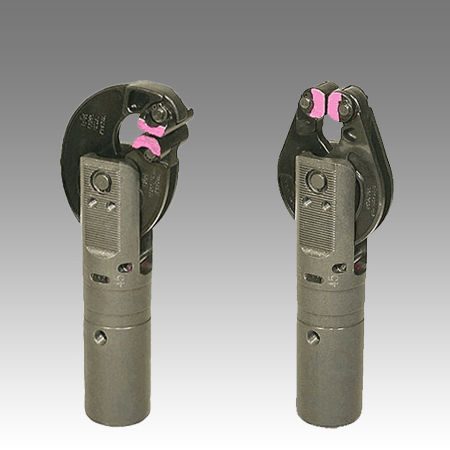

Pneumatic gripper PG-38

angular2-jawhandling

BTM’s locking grippers feature a roller and detent on the cam surface to hold the part if air pressure is lost. BTM’s PG-38 Locking Grippers are ideal for robotic part handling applications. The Grippers are lightweight for high transfer speeds when used in stamping press applications. Proximity Switches (Status Controllers) are optional. The PG-38 Locking Grippers are designed to provide long service in a production environment. The grippers are designed to remained locked on the part, even if air pressure is lost. The Grippers are available in numerous configurations and allow many configuration changes to be performed in the field. Applications Robot End-Effector Stamping and Press Room Automation Automation Positioning Component Assembly Features Adjustable Opening using a Single Pin to Adjust Opening 30 - 45°; remove the pin to open 75° Locking Cam Arm Interchangeable Arm Style by pulling a single pin (single or double opening) Common Gripper Body for all styles
