- Wing nut
- BTS Befestigungselemente-Technik GmbH

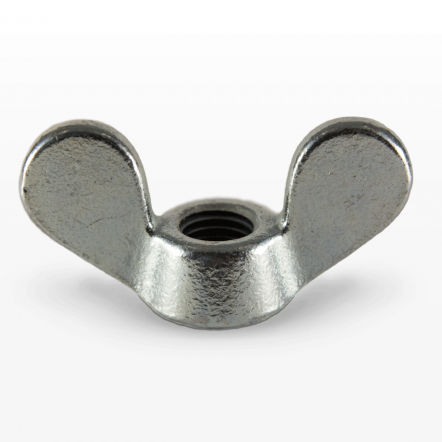

Wing nut DIN 315stainless steelnickel-platedcast iron
Add to favorites
Compare this product
Characteristics
- Types
- wing
- Material
- stainless steel, nickel-plated, cast iron
- Nominal diameter
Max.: 24 mm
(0.94 in)Min.: 4 mm
(0.16 in)- Height
Max.: 55 mm
(2.165 in)Min.: 9.5 mm
(0.374 in)
Description
Wing nuts
DIN 315 | Cast version
Radiuses acc. to DIN 315, ergonomically formed, no sharp edges
Complete range M4 – M24 available while stocks last
On request: Special threads, special parts based on DIN 315 e.g. with sealing hole
RoHS-compliant galvanisation (chromium VI – free)
See also "Special wing nuts"
Packaging:
Standard or acc. to customer specification
Material:
Malleable cast iron EN-GJMB-350-10 acc. to DIN EN 1562 non-plated, zinc-plated acc. to DIN EN ISO 4042, brass (MS) 2.0401 acc. to DIN CEN/TS 13388 non-plated, nickel-plated acc. to DIN EN ISO 4042, aluminium (AL); stainless steel A2, A4, pickled, passivated
Tolerance:
Metric thread 6 H (non-plated 6 G) acc. to DIN EN ISO 965-1
