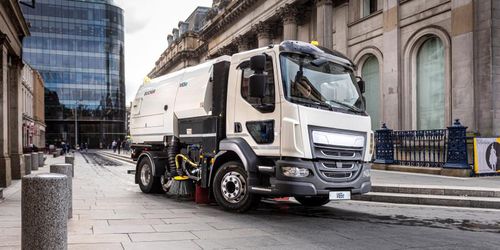

Truck-mounted sweeper MaxPowa R65

combustion engineoutdoordust

Designed to last in the toughest environments, the R series hopper is constructed of stainless steel. The MaxPowa R65 provides cost effective, efficient road sweeping. Regenerative air circulation allows for large forward facing digger gutter brooms and a full width suction to maximize sweeping speed. Combined with ergonomic operator controls and low running costs, the MaxPowa R65 provides an ideal solution to long low cambered roads and urban environments. The MaxPowa R65 features a dust suppression system using an array of water sprays located in suction tube, internal body screen ductwork prior to fan entry, around pick up hood and the gutter brooms. A twin diaphragm water pump driven hydraulically from a direct-coupled motor; self-priming and able to run dry without damage. Water winterization purge system. Superior Size and Accessibility 6.55m³ (8.5 yds³) hopper and full auxillary engine cowling fabricated from 4mm 1.4003 stainless steel. Access doors fitted on both sides with safety grab handle and step to allow for screen and body load inspection. A separate polyethylene water tank incorporates anti-surge baffles and filled via water hydrant. 23500mm (92.5") full width low-noise pick-up hood spring suspended with skids with Ø350mm (14”) diameter suction and pressure hoses. In-cab variable control vacuum enhancer. 3650mm (144”) sweep path with (2) gutter brooms. Heavy-duty stainless steel dynamically balanced impeller with eight self-cleaning abrasion resistant blades. Operational speed variable between 2400 – 3000 rpm to easily adapt to application.
