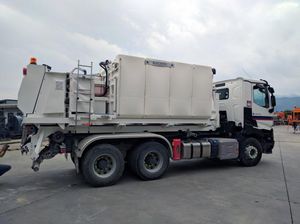

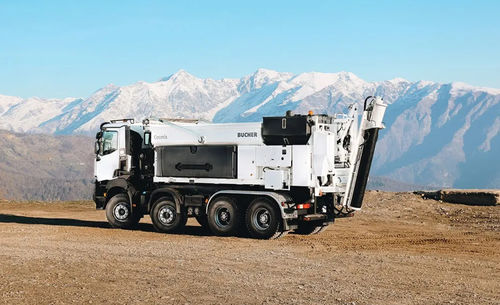

Mobile concrete batching plant Cosmix

single-chassis

Regardless of the project or application, the Cosmix’s unrivaled technology is what makes this unit so universal. Adaptable and versatile, you can be fitted onto a truck chassis, semi-trailer, railway flat car or with a hook-lift system. Unlimited by distance and time your product is mixed when it gets to your job-site. This is a world of flexibility and zero waste, you are free to pour any amount from 0,5m3 up to 50m3/hour to the exact specification of the project from the same load. The possibilities and speed of execution have rarely been so profitable. Key specifications Aggregates hopper – 9m3 Cement hopper – 2,5m3 Water tanks- 2400 L Wireless remote control - 20 functions Working amplitude- 125° Liquid admix system – 2 X 30 L Software enable to save more than 50 formulas Aggregate hoppe Located at the top of the Cosmix, the aggregate hopper stores the premixed sand, gravel, stone or other aggregates. It is split into two hoppers totalling 9m3.The hopper is made of high quality steel. This ensures it is sturdy and waterproof, and prevents the materials from sticking or leaving residue. Cement hopper The cement hopper is 2.5m3. It has a hydraulic driven auger conveyor with a the cement flow to the mixing system. The hopper’s gate is operated automatically by a hydraulic cylinder, which closes at the bottom of the hopper to keep the humidity out of the hopper. It also features a cement level sensor with an warning on the control panel.
