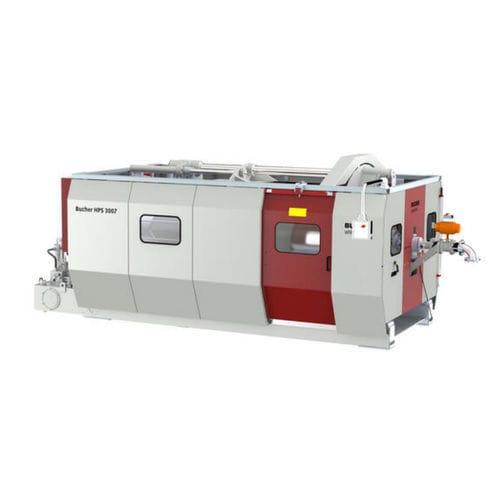

Hydraulic extractor HPS series

solid-liquidfor the food industry

Hydraulic filter press for dewatering of municipal and industrial sludge The HPS press was developed for the solid-liquid separation of biological substances. This machine is an effective solution for communal and industrial sludge dewatering. The solid content of a suspension may be between 2 and 10%. For several performance requirements, there are several machine sizes available. High degree of dewatering Low disposal and drying costs Reliable process and control system Self-optimising process operation Continuous operation without supervision Minimal labour costs Minimal maintenance costs The press is designed as a rotating cylinder piston system with hydraulic drive. Between the end of the cylinder and the piston are flexible drainage elements that are fixed and let the filtrate flow from the inside the press. The pressing process is composed of various steps, including sludge feeding, dewatering by press-cycling, bulking stages, and filter-cake discharge. A complete pressing cycle lasts between 70–120 minutes, depending on the sludge’s capability for dewatering. Bucher HPS 3007 Throughput kg DR/h*: 100–200 Filter area: 18 Empty weight in kg: 11’300 Filled weight in kg: 14’600 Dimensions (L X B x H): 6’500 x 2’834 x 2’550 Power consumption kW*: 10 Bucher HPS 6007 Throughput kg DR/h* 200–400 Filter area 37 Empty weight in kg 18’000 Filled weight in kg 24’000 Dimensions (L X B x H) 7’500 x 3’180 x 2’835 Power consumption kW* 13 Power consumption kW* 18
