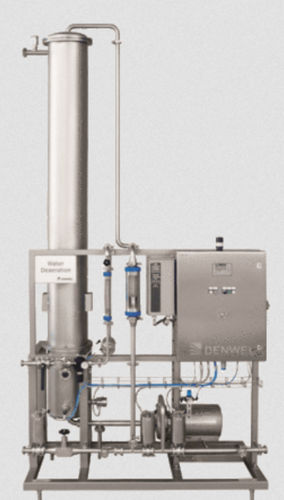

Deaerator for the food industry

for waterstainless steelfor the beverage industry

Column unit for efficient and reliable cold water deaeration under atmospheric conditions. Final oxygen below 10 ppb Carbonation of deaerated water No vacuum required Low CO2 / N2 consumption The deaeration column is filled with high-efficiency structured packing. Its large internal surface ensures a maximal contact area between gas and liquid. Water is homogeneously distributed on the top and CO2 / N2 is injected at the bottom of the column. While the water flows downwards through the packing, the CO2 / N2 rises counter-currently, removing the oxygen to concentrations as low as 10 ppb. A drive controlled pump maintains the level in the column and forwards the deaerated water into a buffer tank or point of use. The unit has an uncompromising sanitary design and is fully CIP cleanable. Final Oxygen: less than 10 ppb (0,01 ppm) Pressure: operating 2 to 4 barg, 30 to 60 psig Temperature: operating 8 to 30 °C, 40 to 90 °F CIP: 2 to 4 barg, 30 to 60 psig; max. 90 °C, 200 °F CO2 / N2 purity: 99,995 % Stripping gas flow: app. 0,5 g/l (final O2, water temperature and column height dependent) Carbonation: app. 2 g/l (water temperature dependent) Connection: Tri-clamp; other connections upon request Dimensions: from Height 5,5 m, 16,4’; Width 1,0 m, 3,3’; Depth 0,5 m, 1,6’ Weight: from 200 kg, 440 lb Material: Stainless Steel 304, EPDM, PSU, PP
