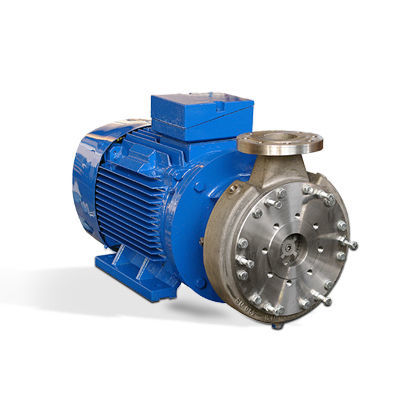

Dynamic homogenizer B series

continuousstainless steelcompact

The Supraton B series stands out for its compact design. Drive motor and tool are connected via a directly coupled shaft so that the bearing module that is in the S series can be omitted. At a low to medium shearing effect, the B series produces good to excellent high-shear mixing results with regard to emulsification, dispersion, and reaction. High-quality materials, from duplex stainless steel to metal-ceramic combinations, ensure high wear resistance. The Supraton B series tools are axially symmetric, which makes them suitable for both directions of rotation. Both flanks can be used if wear occurs. Supraton B series areas of application • Dynamic product viscosities up to 20,000 cP/mPa s • Particle sizes of up to 15 mm • Temperatures up to 200 °C • Pressures up to 8 bar
