Reference electrochemical electrode 6004-0132

glasslaboratory

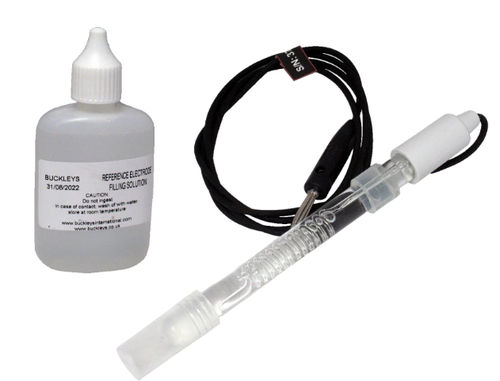

The laboratory type Saturated Glass Reference Cell is an environmentally friendly & easily-maintained replacement for calomel cells and may be used to check and verify the accuracy of K-cells and installed Half Cells. It has been designed to be connected to a separate high impedance voltmeter (greater than 10 meg Ohm) via a one metre lead. The electrode is housed in a high resistance glass body and comes with a salt bridge solution for topping up. The reference electrode will give a service life of several years if used in laboratory conditions and stored correctly. Features: Long cable length (1 metre) Glass body casing Environmentally friendly vs calomel electrodes Refillable Long service life No specialist disposal required post lifetime Supplied with fitted 4mm plug Technical specifications: Electrical connection: 1 metre lead with 4mm plug Output: +196mV @ 25°C vs Standard Hydrogen Electrode (SHE) Accuracy: +/- 10mV @25°C vs SHE Temperature coefficient: -0.64mV per °C Temperature range: 0 - 40 °C Cable length: 1m Size: 155mm long x 25mm diameter Weight (cell): 250g Packed weight: 0.5Kg Dimensions (packed): 13cm x 7cm x 27cm Refill Solution 6004-0133 is available from Buckleys Note: Due to ongoing technical developments, all stated information is typical and is subject to change without notice or obligation
