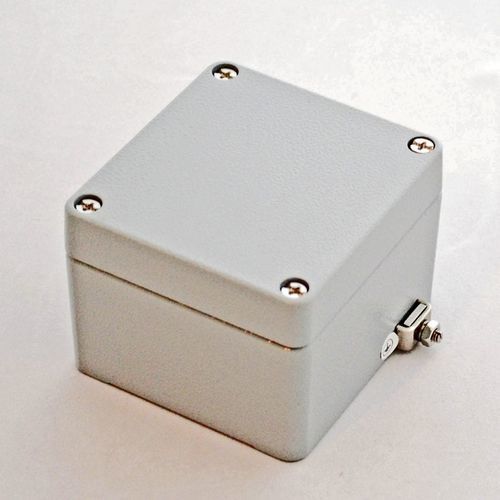

Compact enclosure ATX-10501squaresiliconealuminum
Add to favorites
Compare this product
Characteristics
- Construction
- compact
- Configuration
- square
- Material
- silicone, aluminum, coated
- Protection level
- UL, IECEx, ATEX
- Width
1.9 in, 3 in
- Height
2.8 in, 3.2 in
- Depth
1.9 in, 2.2 in
Description
ATEX Rating:
II 2 G Ex e IIC Gb
II 2 D Ex tb IIIC Db IP 66
DEMKO 13 ATEX 1327771U
IECEx UL 13.0042U
EX# 0539
Intended for use in areas in which explosive atmospheres caused by gases, vapors, mists or air/dust mixtures are infrequent.
Service Temperature Range: – 50 °C to +135 °C
Made of Extra Corrosion resistant Aluminum AlSi 12
Heavy Duty Construction
Powder Coated Light Gray (RAL-7001)
Continuous Gasket made of Silicone rubber
External Ground Bracket for dedicated Ground connection
UL Listed Type 6P File #E358256
External Size L x W x D:
Internal Size L x W x D:
Weight: 0.70 lbs
Color: Gray Powder Coat
RoHS Certified: Always Compliant
Features: ATEX Rated
Gasket Type: Silicone
IP Rating: 66
Features: ATEX Rated
Cover Style: Opaque, Screw Down Cover
