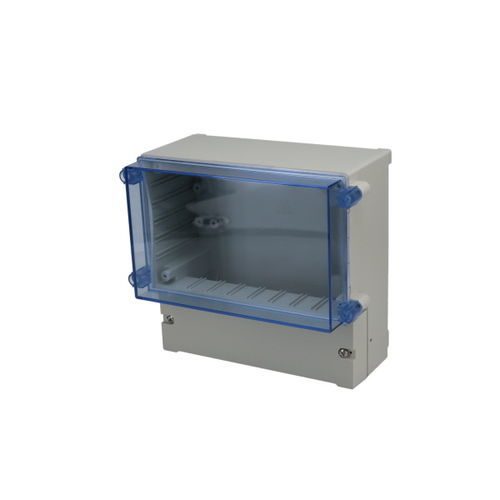

Built-in enclosure DCS-11900

squareplasticpolycarbonate

Body made of high impact ABS Cover made of blue tinted Polycarbonate (UL 94-HB). ( Higher flammability rated material available on special request ) Separate compartment for housing terminals, power supplies, batteries or other equipment not requiring frequent access With screw-on cover IP65 Rating. For hinged cover, see DCH series. Easy to remove knockouts provided on bottom side to accommodate conduit fittings or cable glands Both compartment sealed with durable and oil resistant Silicone sponge gasket Built-in DIN-Rail mounting clips PCB guides provided in upper compartment External Size H x W x D: Internal Size H x W x D: Weight: 0.3 lbs Color: Clear Blue-Tinted Cover / White Body RoHS Certified: Always Compliant IP Rating: 65 Mounting Style: DIN Rail Cover Style: Clear, Screw Down Cover Gasket Type: Silicone Sponge Knockouts: Knockouts Indoor / Outdoor: Indoor (Not UV Stabilized) Flammability Rating: UL94-HB Type of Plastic: ABS Door Type of Plastic: Transparent Blue Polycarbonate UL Rating: UL508 Service Temperature Min: -40°C Service Temperature Max: 70°C
