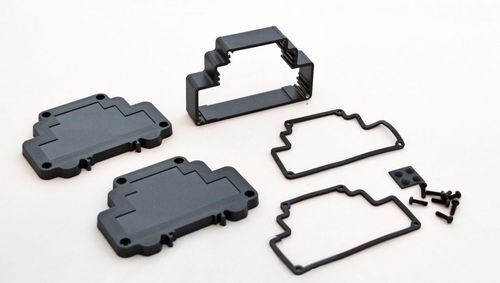

DIN rail enclosure DMX-4776-B

modularplasticpolycarbonate

Designed to mount over a DIN rail while offering all the advantages of an aluminum construction Comes standard with an EPDM gasket (IP66) and a polycarbonate covers UL94-V0 Extruded aluminum enclosure with plastic panels Can be used independently or mounted on a DIN EN60715 (35 mm) rail Plastic panels incorporate a tongue and groove sealing design, with a continuous EPDM gasket designed to meet IP66 rating Body: Aluminum alloy 6063 Plastic end panels: Polycarbonate, flammability rating of UL94-V0 Gasket: EPDM molded (E-4382) Color: Black (RAL9005) Different length of the aluminum enclosure can be special ordered (minimum ordering quantity will be required) Optional clear and infrared polycarbonate plastic covers available Bud can modify the enclosure with drilled holes and special cutouts External Size H x W x D: Weight: 0.18 lbs Color: Black RoHS Certified: Always Compliant IP Rating: 66 Mounting Style: DIN Rail Cover Style: Opaque Gasket Type: EPDM Gasketed: Yes
