Needle valve 6MNBmanualisolationmonoflange
Add to favorites
Compare this product
Characteristics
- Type
- needle
- Operation
- manual
- Function
- isolation
- Body
- monoflange
- Other characteristics
- compact
- DN
Max.: 4 in
Min.: 0.25 in
- Pressure
10,000 psi
- Temperature
Max.: 538 °C
(1,000 °F)Min.: -54 °C
(-65 °F)
Description

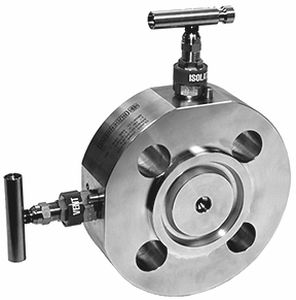

The 6MB is a range of lightweight Monoflange isolation valves that incorporates Heavy Duty Needle Valves for both the Primary Isolation and the Vent Valve
The compact one piece design not only ensures that potential leakage paths are kept to an absolute minimum but offers significant weight and component cost savings when compared to other conventional installation solutions.
The Budenberg 6N Heavy Duty Needle Valve is designed to meet the requirements of piping class installations in accordance with ASME/ANSI standards that features all metal seating and metal to metal body / bonnet connections.
Monoflanges are manufactured in a full range of materials, flange types and ratings as well as having a choice of flange, screw or kidney flange outlets.
Catalogs
Model 6MNB
3 Pages
VAC Products Range
12 Pages
