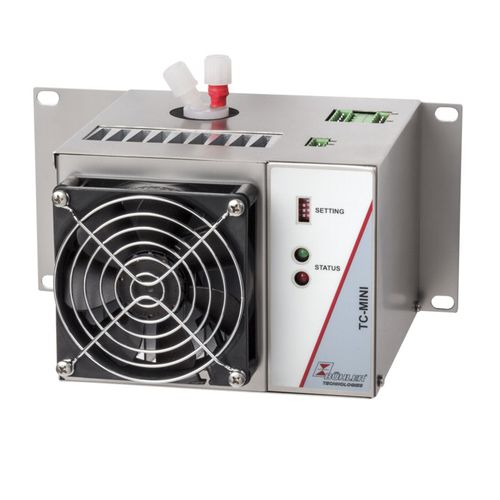

Gas cooler TC-MINI

for the chemical industryfor samplescompact

Peltier cooler with 1 heat exchanger Version for ambient temperatures up to 50 °C Nominal capacity 55 kJ/h (at 5 °C output dew point) Power supply 24 V DC Heat exchanger made from stainless steel, Duran glass or PVDF Dew point 3/5/10/15 °C or Delta-T control setting Signal output 4 - 20 mA or Modbus RTU Status display and output Optional filter and moisture detector Maintenance free Low operating noise Many gas analysis processes require extracting sample gas from the process. This also extracts process-related contamination such as particles or moisture. These can impact the measurement results or damage the measuring cells. The sample gas must therefore be conditioned before entering the analyser. The sample gas cooler reduces the gas temperature to below the dew point for this purpose, causing moisture to drop out, which is then discharged as condensate.
