Cartridge filter housing AGF-T-30
for gasplastic

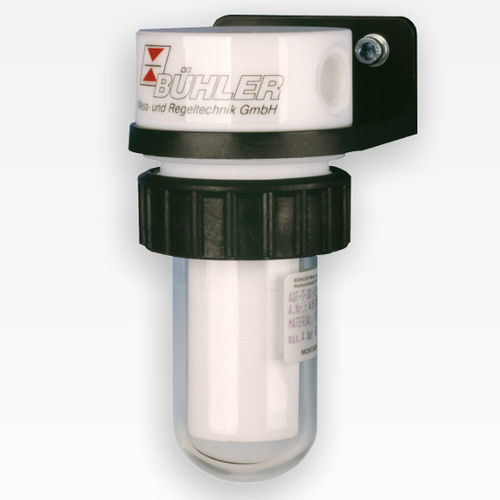

Cartridge filter housing - AGF-T-30 - Bühler Technologies - for gas / plastic

Cartridge filter housing - AGF-T-30 - Bühler Technologies - for gas / plastic - image - 2

Cartridge filter housing - AGF-T-30 - Bühler Technologies - for gas / plastic - image - 3

Cartridge filter housing - AGF-T-30 - Bühler Technologies - for gas / plastic - image - 4

Cartridge filter housing - AGF-T-30 - Bühler Technologies - for gas / plastic - image - 5

Cartridge filter housing - AGF-T-30 - Bühler Technologies - for gas / plastic - image - 6

Cartridge filter housing - AGF-T-30 - Bühler Technologies - for gas / plastic - image - 7

Cartridge filter housing - AGF-T-30 - Bühler Technologies - for gas / plastic - image - 8

Add to favorites

Compare this product

Characteristics

Filter type

cartridge

Fluid

for gas

Material

plastic

Operating pressure

Min.: 0 bar
(0 psi)

Max.: 4 bar
(58.015 psi)

Description

Full PTFE housing top Maximum chemical resistance, for use in highly aggressive mediums Filter fineness of 2 μm or 25 μm with sintered PTFE elements No absorption of trace gasses Quick response time in systems due to low dead volume Variable wall mount Even if the particular contaminant has already been removed at the extraction point through effective particle filtration inside the gas sampling probe, in long or branched sample gas line there is a risk of secondary contamination. Additional filters are therefore often installed at the point where the sample gas enters the analysis system and also before delicate system components.
