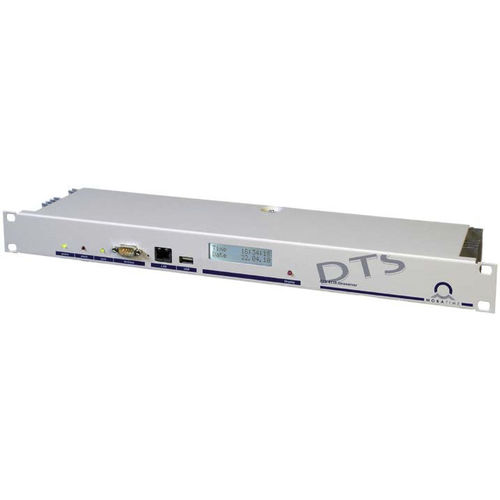

GPS time server DTS 4135.timeserver

high-precision

The multipurpose time server DTS 4135.timeserver The DTS 4135.timeserver sets new standards as a time reference for all NTP clients in medium and large networks (LAN Ethernet/IP/UDP). It is highly precise and with its intel-ligent concept for redundant opera-tion, it offers a high degree of reli-ability and availability. The DTS 4135.timeserver can either be synchronized from a time signal receiver (DCF 4500, GPS 4500 or IRIG/AFNOR time source), or from another NTP or SNTP time server in the LAN or Internet. The DTS 4135 can synchronize all slave clocks with NTP movements, either with NTP Multicast or NTP Unicast (both with time zone server function). As a multipurpose device the time server is equipped with two inde-pendent IRIG/AFNOR outputs, two serial RS 232/RS 485 interfaces with script file programmable tele-grams, two DCF or high accurate pulse /frequency outputs (RS 422 and optocoupler) and one addition-al DCF current loop output. The highest degree of system availability and reliability can be achieved by the master-slave op-eration of two DTS 4135.timeserv-ers connected via fiber-optic (redun-dant operation). Alarms are signaled by alarm relay, SNMP messages or e-mails.
