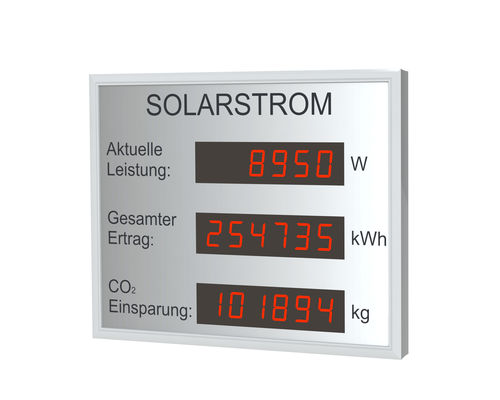

LED display DSI

numeric7-segmentcontrol

Special LED display for the visualization of the performance data of a photovoltaic system. Control of the display via S0 interface or RS 232, RS 485 or Ethernet protocol. Various communication protocols are supported: HVG, Modbus RTU, Modbus TCP, HTTP JSON ... Compatible with data loggers such as Sunny WebBox, Solar Log, Fronius Datamanager ... The time and configuration parameters are easily and simply set with an infrared remote control. High luminosity of the numeric display and automatic brightness control - depending on the light conditions - by built-in sensor. One-sided design, high versatility and flexibility in ordering through a modular design concept. Custom design of the display surface by e.g. Company templates and corresponding foil lamination. Power supply with 100-200 VAC, 50/60 Hz. DC connection available on request. Housing construction and LED luminaires for indoor installation and operation. The 7-segment display offers a wide viewing angle for reliable readability. The digit heights are available with 38 or 57 mm and therefore for different reading distances. Front glass made of dark-tinted and antireflective acrylic glass, so that reflections are avoided and good legibility exists. Sleek, elegant housing construction made of anodized aluminum extruded profiles. Standard in black or silver, other RAL colors available at extra cost. The depth is only 39 mm. Protection class IP 40 for indoor applications.
