Acrylic resin furnace Buga Airove

electrichot airvacuum

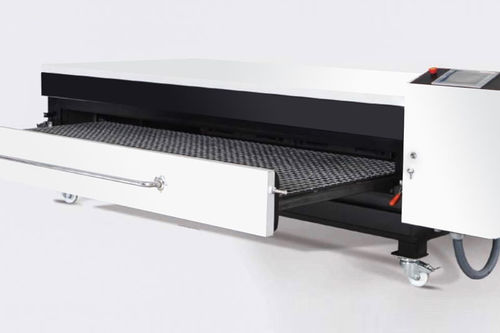

El BUGA AIROVE allows homogeneous heating of composite materials such as acrylic resins and PMMA. The oven can heat panels up to 30 mm thick. The machine is equipped with a PLC (Programmable Logic Controller) assisted by a 13-inch touch screen allowing the application of 20 programs. Two “k” probes tell you the core temperature of the material during heating and cooling. This way you control at any time the heating of your resin plate regardless of its size. This patented technology gives the BUGA Duo an unprecedented level of reliability. The BUGA Airove is suitable for homogeneous heating of acrylic resin, PMMA and other termoformable polymers. The manufacturing rate is about 25 minutes per 12 mm thick panel. Automatic or manual work mode Oven lacquered multi perforated metal vacuum table Hot air furnace ventilated by 3 or 4 circuit turbines specially designed for its homogeneity and patented. Maximum temperature: 190ºC Triple temperature control with 2 “k” probes and one PT100 prob Oven insulated with 50 mm rock wool 13” touch screen with 20 programmable menus Buzzer sound and light to indicate the end of the cycle Temperature control on the touch screen to monitor the heating of materials and the cooling of thermoformed parts. Industrial wheels with brakes Schneider Electric brand electrical components Electrical connection 380v / 50-60Hz Max power: 15 to 18.5 kW Average power consumption 4 to 6 kW/h aprox. 2 year warranty
