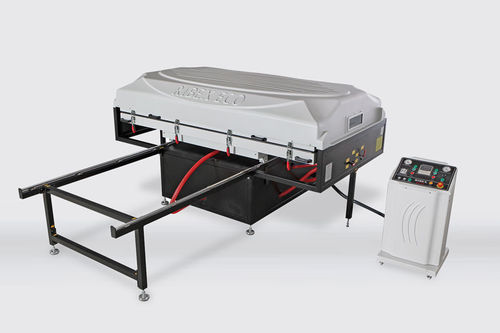

Panel thermoforming machine Eco

for Corian®automaticvacuum

The ECO is the most economical vacuum press for 3D PVC in its range. Able to laminate with PVC 3 D all doors and mdf panels on the market with a thickness of up to 30 mm, the ECO is equipped with a 100 m3/h vacuum pump Becker offering the user the full guarantee of a German brand at the service of the most demanding kitchen and bathroom fitters. The use of magnetic supports to enhance the doors allows comfortable and clean work. The machine has a “step by step” vacuum function much appreciated by the workshops and operators. This function allows you to control the first times of the vacuum and to work in steps for a perfect marking of all the details of your doors. Its infrared heating system guarantees speed and efficiency when heating PVC. Infrared lamps do not heat the air, but transmit electromagnetic waves that generate heat in the product, saving time, space and energy. The machine consists of a vacuum table mounted on 2 rails so that it can be placed under the heat dome and extracted as appropriate. In this way the operator works comfortably outside the hot zone, being able to access all parts of the vacuum table. The dome of infrared lamps has a capacity of up to 110 mm high, allowing work on slightly curved doors. From the control desk, the vacuum time and pressure is controlled and a laser probe (no contact) allows to regulate the temperature under the dome. The vacuum table can work with or without membranes. The membranes can be made of natural rubber or silicone. Vacuum table mounted on rails Becker brand oil vacuum pump 100m3/h model U 5.100 Maximum vacuum pressure achieved: up to 9,8 t/m2
