Sublimation furnace SUB-1112-3D

hot airvacuumindustrial

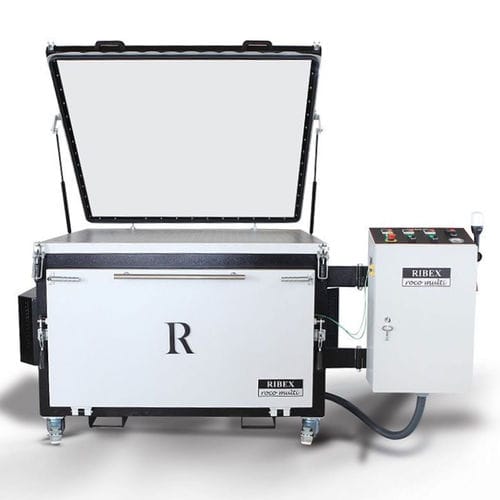

SUB-1112-3D For small size sublimations or sampling TO SUBLIMATE literally means “going from a solid to a gaseous state, without going through the liquid state”. Thanks to this process we can print in the mass all materials able to withstand 175º C. The SUB-1112-3D is equipped with an oven and a vacuum pump producing homogeneous heat under controlled vacuum conditions. It is also the most economical of its professional range perfectly suited for the sign industry. The SUB-1112-3D is recommended for professional use in small production or sampling. Production cycles range from 2 to 30 minutes. Ventilated hot air oven Working surface: 1100 1250 mm Turbine ventilated double resistance Max temperature: 190ºC 40m3/h Becker maintenance-free vacuum pump Max pressure: 9 t/m2 Silicone sublimate pocket Manual Work Mode 50 mm rock wool furnace insulation Multiperforated Metal Vacuum Table High precision temperature control by k-type probe Digital clock and temperature control Analog vacuum time and pressure Silicone Membrane Metal Frame 4 industrial wheels with brakes Schneider brand electrical components Emergency stop button on console Conexión eléctrica 380v / 50-60Hz Power: 9.5 kW – 14 A 2-year warranty OPTIONS Second Sublimation bag to enhance production APPLICATIONS The SUB-1112-3D was designed to work on the following materials: Thermoplastics (PMMA, Madera, Kydex, sólidas, etc.) Chromaluxe materials Polyesters and acrylic textiles Suitable lacquers and varnishes
