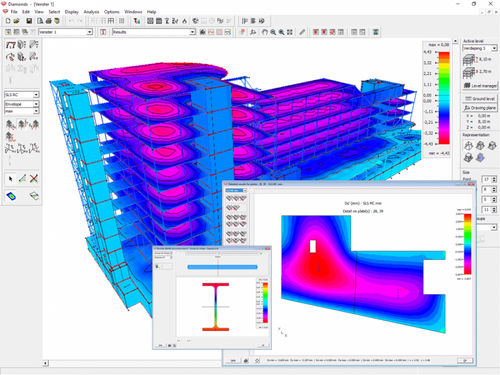

Analysis software Diamonds

optimizationcalculationBIM

Diamonds is the perfect software for analysis of steel, concrete and timber structures. Watch some videos, look at the brochure or read more about the advantages of Diamonds. Each Diamonds license can be extended with additional modules such as fire resistance, seismics, moving loads On executing the Eurocode and AISC steel resistance and buckling verifications, the appropriate cross-section classification is taken into account. Buckling lengths and lateral torsional buckling supports are specified in no time or automatically calculated. Based on these checks Diamonds performs a cross-section optimization. Connections can be transferred to PowerConnect. Eurocode 3 (UK, DE, ES, PL, ...) and AISC- LRFD Extendable built-in section library Cross section classification Buckling length calculation Lateral torsional buckling supports Cross-section optimization Diamonds calculates the optimal reinforcement solution according to Eurocode and ACI. This serves as a starting point for a practical reinforcement definition. You can then calculate cracked deflections and crack widths for bar and plate elements or verify punching for plates and footings. For beams, complete reinforcement drawings can be generated with ConCrete Plus. Eurocode 2 (UK, DE, ES, PL, ...) and ACI Optimal reinforcement quantities Cracked deflection with creep Crack widths Deformation in time Punching verification Diamonds calculates the deflection with creep effects, based on the service class. On execution the Eurocode timber verifications, buckling lengths and lateral torsional buckling supports are taken into account.
