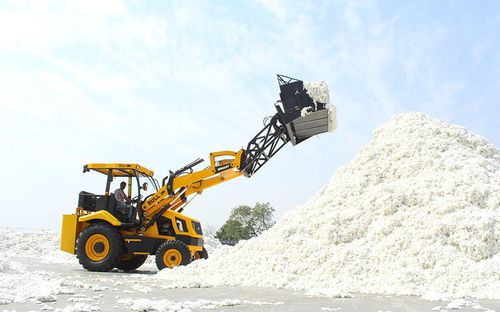

Articulated backhoe loader BULL SMART 60

ENGINE Engine - Kirloskar 4R 810T, Turbo Change EURO - III A Diesel Engine. Gross Power: - 44.8 Kw(60 HP) at 2400 RPM Gross Torque - 215 NM@1600 RPM TRANSMISSION BULL SMART comes with CARRARO synchro-shuttle transmission that provides superb drive power in all conditions. it consists of a 4-speed fully synchromesh gearbox with integral torque convertor and electrically operated forward & reversing shuttle. The pedals layout and conventional 4 pattern gear lever with transmission disconnect switch adds to the overall ease of operation. On the move gear changes are possible. Option: SMART HTS offers state of the art open loop Hydrostatic drive(Patent pending). AXLES Rear: Drive axle rigidly mounted, incorporates Max-trac torque proportioning differential, driven by short propshaft from gear box. Front: Steer axle, centrally pivoted with oscillation angle ±16°. BREAKS Service: Hydraulically actuated, duel line, self adjusting, compensated oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc., requiring no maintenance. Operation Through independent pedals linked together for normal use. Two independently operatable foot pedals enable machine to maneuver in tight spaces. Parking: Hand operated, oil immersed multi disc on the rear axle. STEERING Full power, front wheel hydraulic power steering with manual capability in the event of engine or hydraullic power failure. Hydraulic supply from pump via priority valve. Working pressure 1958 psi (135 bar). ELECTRICALS 90 Ampere-hour 12 volts battery system with alternator and full road lighting. TYRES Front: 2WD: 9.00X16 - I6 PR, 4WD: 12.5/80X18 -12 PR Rear: 14.00X24 -16/20 PR
